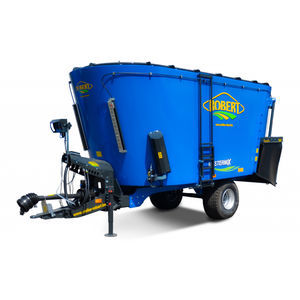

Vertical mixing wagon MASTERMIX 1T

towedfront dischargesingle-auger

Standard on all MASTERMIX models, the counter knives ensure better cutting of long forage. Their position in the tank and their shape have been studied to offer the greatest efficiency and better ergonomics. Frame integrated in the tank Rigidity and solidity thanks to the 15 mm steel frame welded directly to the tank, ensuring perfect resistance over time. Economic screw Designed to cut and mix with a minimum of driving force, the MASTERMIX screw is an evolution in itself. High precision weighing on 3 points Perform accurate mixing controlled by 3 ∅ 70 mm load cells with control screen. Oil bath gearbox Gearbox completely immersed in an oil bath with reservoir and easily accessible control gauge avoiding any regular maintenance at the lubrication level. Standard equipment •Mixer with 1 vertical screw ø 2400 mm •6 mm/8mm and 15 mm tanks in s 355 •Frame integrated in the tank •2 manual counter-knives •PG 1602 screw reducer (15700 Nm torque) - MASTERMIX 1-13 •Without gearbox •Screw speed at 540 rpm •MASTERMIX 1 -13 : 25 rpm •Distribution by PVC carpet •3-point weighing with load cells ø 70 •Non-programmable weighing •Direct tractor connection of hydraulic functions (2 x double acting) •Control scale •Height adjustable drawbar •Manual crutch •Manual and hydraulic brake •Axle # 70 with wheels of 400/60 15,5 new tires Options DISTRIBUTION Options Second side door with fixed shelf direct connection to tractor PL Rear door direct connection to tractor PAE1 Rear door opening index (per piece) IPA1 90 cm PVC side door unloading belt with hydraulic folding (only with DE and CSE option) (per side) TP1
