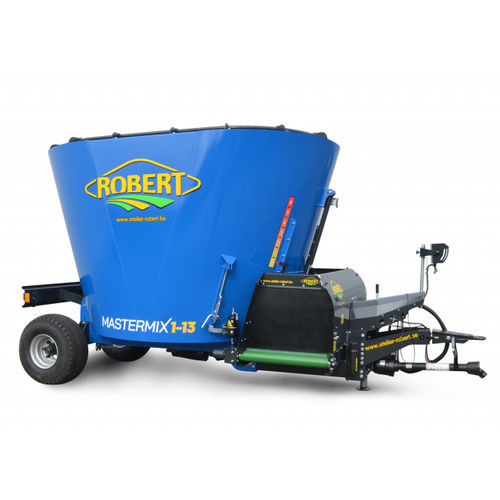

Vertical mixing wagon MASTERMIX SB-T

towedfront dischargesingle-auger

Fitted as standard on all MASTERMIX models, counter-cutters ensure the optimum cutting of long forage. Their position in the tank and shape have been designed to deliver maximum efficiency, combined with optimum ergonomics. Tank-integrated frame Rigidity and solidity delivered by a 15 mm steel frame welded directly to the tank, ensuring the rigidity of the tank structure A cost-effective screw Designed for cutting and mixing with the minimum motive power, the MASTERMIX screw constitutes a development in itself. 3-point high-precision weighing system For the execution of accurate mixes, controlled by three ∅ 70 mm balances, with control screen Oil bath gearbox Gearbox completely immersed in an oil bath with reservoir and easily accessible control gauge avoiding any regular maintenance at the lubrication level. Standard equipment • Mixer with 1 vertical screw : MASTERMIX 1-7 to 9 : ø 2100 mm • Mixer with 1 vertical screw :MASTERMIX 1-13 : ø 2400 mm • 8 mm and 15 mm tank in s 355 • Tank-integrated frame • 2 manual counter-cutters • Worm gear reducer PG 1202 (torque 11600 Nm) - MASTERMIX 1-7 to 9 • Worm gear reducer PG 1602 (torque 15700 Nm) - MASTERMIX 1-13 • With no gearbox • Speed of worm: 540 rpm / MASTERMIX 1- 7 to 9: 27 rpm • Speed of worm: 540 rpm / MASTERMIX 1 -13: 25 rpm • Distribution through a front right side door with fixed shelf • 3-point weighing system with Ø 70 balances • Non-programmable weighing system • Direct connection of hydraulic functions to tractor. • Inspection ladder • Height adjustable drawbar • Manually operated jack • Manual and hydraulic brake • Axle # 70 with wheels of 400 / 60 15.5 new tyres
