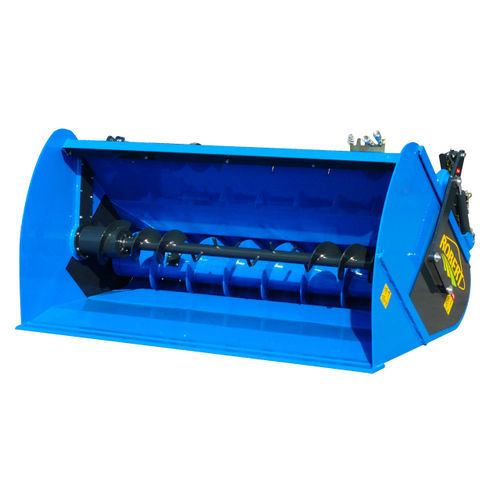

Mixer shovel bucket BV 1 SORTIE

silage unloadingwith distributor

Over the years, thanks to their highly robust design and their operational versatility, ROBERT silage distributing buckets have become a benchmark on the European market. With an extensive range of models and a wide variety of options available, this has become an essential machine for the straightforward, high-speed and low-cost feeding of your livestock. 1 • Bolted hitch gear Bolted hitch gear for the offset of the bucket and straightforward transfer to another type of loader at a later date, with no necessity for modification. 2 • Hydraulic actuator Hatch opening by hydraulic actuator. 3 • Efficient distribution Large output, combined with a 400 mm diameter screw, permits the rapid and efficient distribution of silage. 4 • Reinforced bucket The bucket is fitted with reinforcements which prevent any strain during intensive long-term use. 5 • High-grade steel Bucket manufactured from high-grade S355 steel of 8 and 10 mm gauge. 6 • Hydraulic motor The screw conveyor is driven by a powerful hydraulic motor, via an oil-immersed gearbox. 7 • Support bearing In order to prevent the application of any force to the gearbox, the conveyor screw is supported by a bearing arranged at the end of the screw. 8 • Overflow prevention plate In order to ensure clean and efficient transport, all buckets in the BV range are fitted with an upper overflow prevention plate, to prevent any loss of product. 9 • Hydraulic hatch Hydraulic hatch interlocked with the movement of the screw, in order to ensure perfect leak-tightness during transport. 10 • Central bearing Screw bearing offset towards the centre of the bucket, in order to facilitate the distribution of feed.
