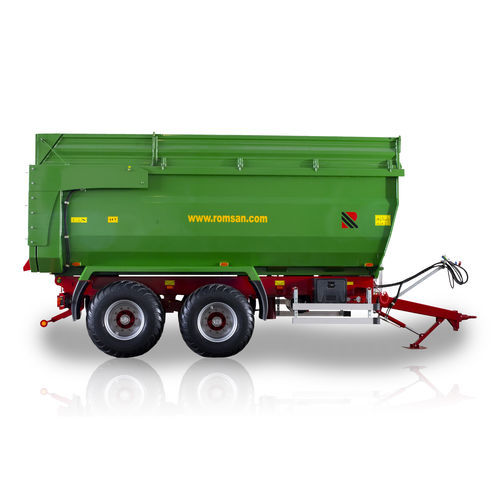

Tipping trailer R140TAHKP4
mountedtandem axleagricultural

tipping trailer
tipping trailer
tipping trailer
tipping trailer
tipping trailer
Add to favorites
Compare this product


Characteristics

Construction
tipping
Type
mounted
Number of axles
tandem axle
Application
agricultural
Payload
14 tons
Brake system
with hydraulic braking, with pneumatic braking
Empty weight

5,300 kg
(11,684.5 lb)

Load volume

16.5 m³, 22 m³
(582.692 ft³, 776.923 ft³)

Loading case lenght

5,500 mm
(216.5 in)

Loading case width

Min.: 2,100 mm
(82.7 in)

Max.: 2,150 mm
(84.6 in)

Description

Loading Space - - Dimensions; Lenght/Widht/Height:7350 / 2450 / 3450 mm Sidewall Height:1500/2000 mm* Floor/Wall Thickness (mm):5 mm/ 4 mm Wheel Track:1950 mm Suspension:Parabolic Spring Tyres:500/60-22,5 Maximum Speed:40 km/h Tipping System:Back Side Telescopic Cylinder (Piston Stage/Oil Required/Working Pressure):4 Stage/25 lt/ 160 bar Tipping Angle (Backwards/Sides):50°
