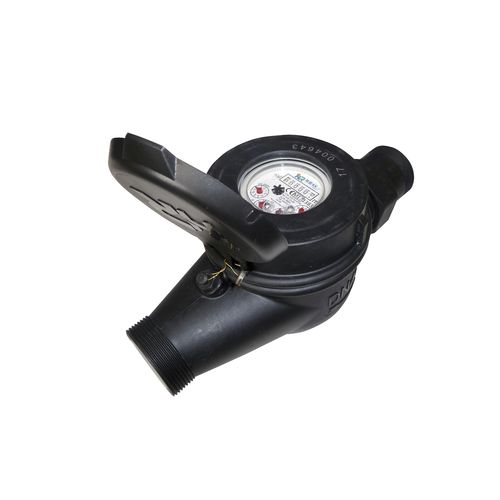

Magnetic flow meter MULTI-JET

irrigationtangential

PLASTIC MULTI – JET WATER METER (COMPOSITE) MODEL MJ-SDC Description It is a counter for cold water with turbine and dry dial model "Super Dry" with reading mechanism mounted dry compartment, direct aggregation through numbered rollers, the rotor rotates in a chamber tangential measurement (distributor) with a double row holes. The transmission of motion from the submerged portion to the dry portion is obtained by a special magnetic attachment, adequately protected against external magnetic fields. There is a version available for remote reading with reed contact. MJ-SDC model offers the following advantages: •Readable by the numbered rollers, thanks to mount a vacuum dry compartment to prevent fogging phenomenon. •Absolute reliability thanks to the anti-fraud magnetic shielding. •Optimum hydraulic performance: The counter has MID approval R80 horizontally across the range. •Long life due to a low number of twists / liter of the turbine and the selection of quality materials. •Easy maintenance. •Can be installed horizontally and vertically. •Pulse values K=1 K=10 K=100 (standard) K=1.000 MULTI – JET WATER METER MODEL MJ-SDC (BRASS) Description It is a counter for cold water with turbine and dry dial ("Super Dry" model). Counts immersed in the water with direct aggregation trought 5 numbered rolls. The transmission of movement from the part immersed in the water to the dry part is obtained by a special, timely magnetic coupling protected against external magnetic fields. There is an available version for remote reading with a reed contact. In the output there is the possibility of placing a non-return valve. Also available a version for hot water up to 90 ° C.
