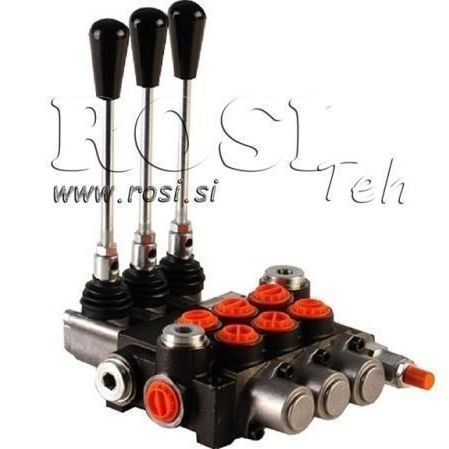

Hydraulic valve 3XP40

for controlsafetymanual

Supplier:Bulgaria maximum pressure connection "T":50 bar Return or exchange:14 days Product weight:5.75 kg nominal flow:40 lit/min Warranty:6 months operating temperature:-40 to +60°C maximum pressure connection "P":250 bar operating temperature of oil:-15 to +80°C factory set safety valve:180 bar safety valve adjustment range:50-230 bar maximum pressure connection "A" and "B":300 bar Manual or mechanical hydraulic valve Р40 is designed for the distribution and control of the working flow between the hydraulic pump and consumers (cylinders, hydraulic motors…). Hydraulic valves are used for various purposes in agriculture, industry, construction, etc. for controlling: • single-acting cylinders • double-acting cylinders • hydraulic motors • floating functions (for plow) • joysticks (up-down, left-right) • They are assembled in a block from 1 to 7 levers. Operation: All hydraulic valves are equipped with a safety valve. In the neutral position (lever in the middle), oil circulates through the valve. When the lever is shifted to one side or the other, the hydraulic valve causes the movement of the cylinder or the rotation of the hydraulic motor in one direction or the other. After releasing the lever, it automatically returns to the neutral position, the hydraulic motor or cylinder stops in the current position, and the oil circulates again through the valve.
