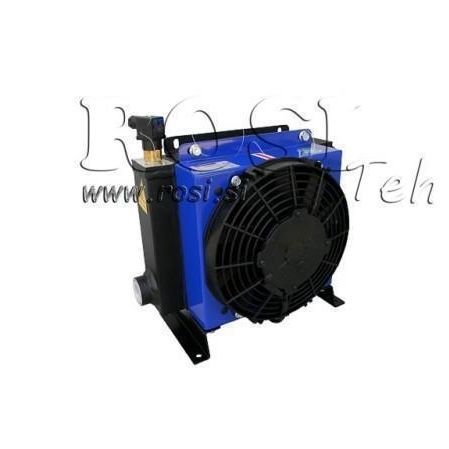

Oil heat exchanger HY01002

aluminum

Current load:6.3 A Return or exchange:14 days air flow:400 m3/h Product weight:4.8 kg Voltage:12 V noise level:72 db(A) thermostat on:60°C max. operating temp.:120°C external protection:IP 65-68 start:soft start max. static pressure:36 bar for oil flow:10-40 lit capacity:0.8 lit for liquids:oil - water / glycol - Diesel fan:167 mm Standard compact 'cross-flow' heat exchangers are used for cooling hydraulic systems. They are designed for installation on industrial machines, tractor attachments, mobile machines, car lifts, in truck applications, etc. They can be used with DC or AC electric motors. Radiator cores made of aluminum alloy, are manufactured using vacuum brazed welding technology. This achieves high resistance of the selected material and reliability, ensuring the best sealing for the pressures of various hydraulic systems.
