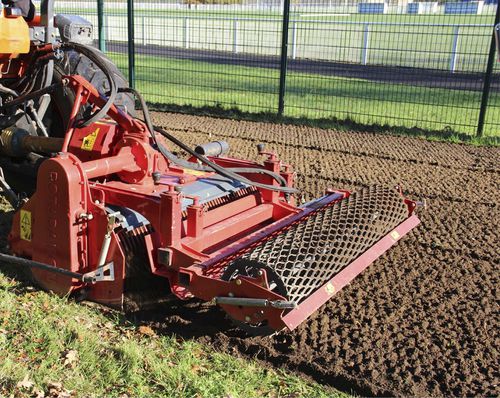

Stone burier with roller RDL 150

for tractors

This soil preparer and stone burier is designed for tractors. It allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously decompacted in depth. •Oversized rotor •Anti-pad blades (ROTADAIRON patent) •Selection grid fingers •Oil bath torque limiter at rotor end •Working depth adjustment •Grader blade Options •Rear mesh roller side adjustment device by cylinder •Roller cast iron notched discs + scraper •Stainless steel splice seeder: SMC 150 Technical Specifications Size of the machine •width: 1950 mm (76” ¾) •length: 1880 mm (74”) •height: 1120 mm (44’’) •total weight: 798 Kg (1759.2 lb) Work Dimension •width: 1500 mm (59″) •working depth: 160 mm (6” ¼) Depth adjustment made by screw jacks on rear roller Angle gearbox + oil bath chain Torque limiter with dry friction and flywheel
