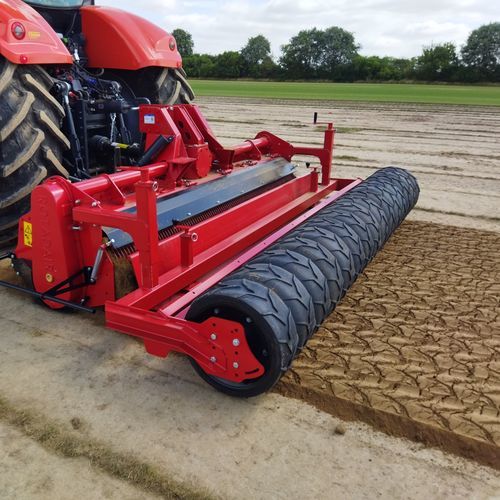

Tractor stone burier RX 250-L3

with roller

This soil preparer and stone burier allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously decompacted in depth. Its particularity is that its transport width is 3 meters (118” 1/8). •Oversized rotor •Anti-pad blades (ROTADAIRON patent) •Selection grid fingers •Oil bath torque limiter at each end of the rotor •Soil preparation principle •Working depth adjustment •Grader blade •Rear mesh roller side adjustment device by cylinder Options •Roller cast iron notched discs + scraper •Anti-groove system (ARS) Technical Specifications Size of the machine •width: 2965 mm (116″ 3/4) •length: 2200 mm (83″ 1/2) •height: 1290 mm (52″ ¾) •total weight: 1935 Kg (4264 lb) Work Dimension •width: 2500 mm (98″ 1/2) •working depth: 220 mm (8″ ½) Depth adjustment made by screw jacks on rear roller Angle gearbox + oil bath chain Oil bath torque limiter at the end of the roto
