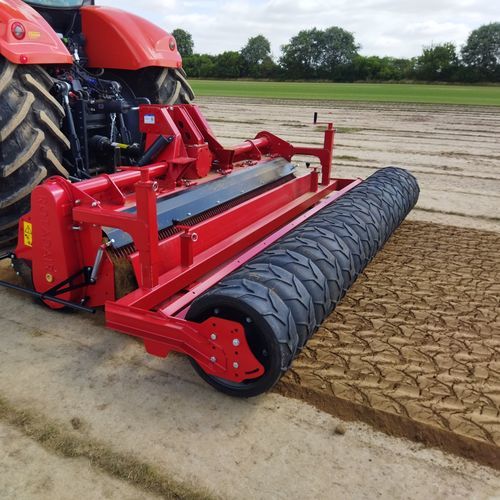

Tractor stone burier RX 300

with roller

This soil preparer and stone burier allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously decompacted in depth. •Oversized rotor •Anti-pad blades (ROTADAIRON patent) •Selection grid fingers •Oil bath torque limiter at each end of the rotor •Soil preparation principle •Working depth adjustment •Grader blade Options •Roller cast iron notched discs + scraper •Tire roller •Pneumatic seeder: SMA 300 •Anti-groove system (ARS) Technical Specifications Size of the machine •width: 3870 mm (152″ ¼) •length: 2220 mm (87″ ½) •height: 1290 mm (50″ ¾) •total weight: 2192 Kg (4832.5 lb) Work Dimension •width: 3050 mm (120″) •working depth: 220 mm (8″ ½) Depth adjustment made by screw jacks on rear roller Angle gearbox + oil bath chain dual Oil bath torque limiter at the end of the rotor
