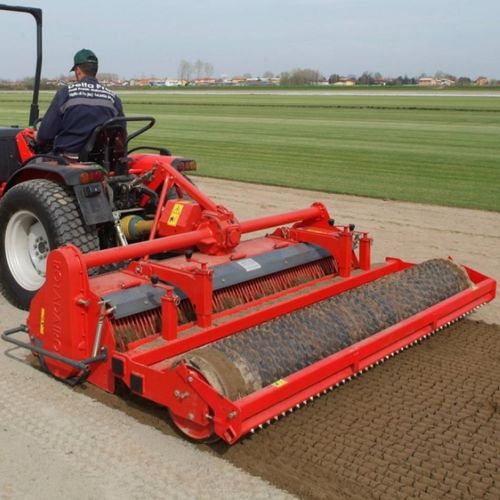

Tractor stone burier RDL 250

with roller

Stone burier for Tractor This soil preparer and stone burier is designed for tractors. It allows the building or renovation of green spaces by preparing the seed bed before seeding. The machine is multi-purpose, it allows tilling, burying (stones, rubbish, herbs, etc.), levelling, mixing and rolling the surface. The use is done live or on a ground previously decompacted in depth. •Oversized rotor •Anti-pad blades (ROTADAIRON patent) •Selection grid fingers •Oil bath torque limiter at rotor end •Working depth adjustment •Grader blade Options •Rear mesh roller side adjustment device by cylinder •Roller cast iron notched discs + scraper Technical Specifications Size of the machine •width: 2944 mm (116’’) •length: 1890 mm (74’’ ½) •height: 1120 mm (44’’) •total weight: 1134 Kg (2500 lb) Work Dimension •width: 2492 mm (98″) •working depth: 160 mm (6” ¼) Depth adjustment made by screw jacks on rear roller Angle gearbox + oil bath chain Torque limiter with dry friction and flywheel
