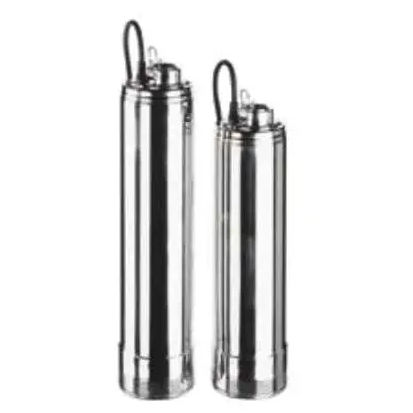

Water pump PI 40/08 M, PI 80/15 M

submersibleimpellerelectric

SIR IRRIGATION STATIONS SUBMERSIBLE PUMPS SUBMERSIBLE PUMP FOR 5” WELLS Material Outer shell, motor cover, seal holder disk, filter and fastening ring in AISI 304; impeller, difuser and spacer in PPE+PS reinforced with fibreglass; shaft in AISI 431; upper mechanical seal (motor side) in carbon/ ceramic/NBR and lower seal (pump side) in SiC/carbon/NBR. Electric pump with double mechanical seal surrounding an oil chamber. 2-pole self-ventilated asynchronous motor cooled by the fluid transported, insulation class F and protection level IP68. Function Movement of clean water from wells, cisterns and rainwater collection tanks; pressurisation of domestic systems; small-scale irrigation; carwashes; pressure increases in general. Use and maintenance Under normal operating conditions, the electric pump does not require any maintenance operations. The only recommendation is that proper operation be checked periodically, in particular checking for any abnormal noise and vibration that may arise and checking any loss of mechanical seal.
