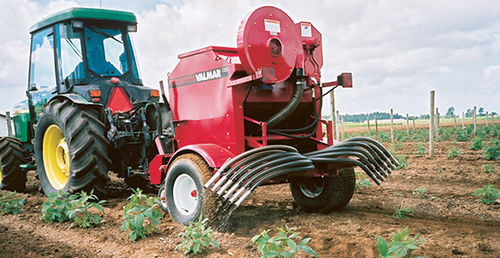

Towed fertilizer spreader 1255

liquidpneumatic

Air Manifold Gauge A Murphy gauge measures air manifold pressure using inches of water column. The gauge is connected to the in-cab control with warning light and buzzer to warn of insufficient air pressure, ensuring proper application. Manifold-Venturi System and Funnel Tray The venturi and manifold systems can be lowered by means of a quick release. Funnel trays are inserted for collection of product when calibrating or emptying the unit. Hopper Bottom Slide Gates Manually operated slide gates stop product flow to the metering system, allowing you to remove the roller for cleaning or servicing. Calibration Hand Cran To make calibrating a product as precise and easy as possible, a hand-crank is provided to turn the metering system. The product can be collected by using the funnel trays and weighed for determining exact application rates. In-Cab Contro The dual electric clutch control allows you to operate the metering system from the operator’s seat. Two magnetic clutches and in-cab control allow hals shut-off on either side. SPECIFICATIONS Hopper: -18 cubic feet -409 stainless steel with a two-component epoxy primer and a two-component, cross-linked acrylic top coat -Weather tight lid -Product level sight gauge Metering: -Ground driven -Half shut off on either side -Comes with two types of metering roller -28-groove rollers for fine granulars and small seeds -12-groove rollers for fertilizer and large seeds -In-cab electric clutch control and air manifold monitor -60-speed gearbox with five percent between settings -Air manifold and venturi system drop for easy cleaning -Half width shut off on either side
