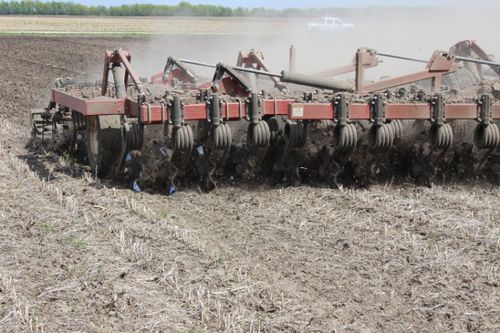

Towed disc harrow I-2200

3-sectionwith hydraulic adjustment3-point hitch

1 5/8” Coil-Tech Coulter II blade mount The I-2200 combines the Coil-Tech Coulter II 1 5/8" Independent blade mounting system of the I-2100 with the five-inch spacing of the I-1200. This combination allows for excellent seedbed preparation, thorough residue sizing, effective mechanical weed control, 60 percent more spring down pressure (versus the Coil- Tech I), and deeper penetration into tough ground conditions via 22-inch blades and increased jackhammer effect (versus 20-inch blades on Coil-Tech I). These performance characteristics, combined with the speed capabilities of the entire Independent Series, make the I-2200 a formidable and highly productive package. The I-2200 is compatible with all Salford seeding and fertilizer application attachments, including SwitchBlade hydraulic shanks. This allows for the combination of multiple operations into one pass, therefore multiplying the productivity factor of the machine. The I-2200 may also be combined with Salford standard and Flex Finish harrow systems to produce a fine, level field finish. STANDARD FEATURES Coulters and Mounts -20” dia x 5mm coulter -Boron steel blades -8 or 13 wave blades -5” of vertical travel Frame -Heavy Duty 4”x 6” tubing -Hydraulic level lift -Hydraulic single-point depth control -Heat treated cast clevis hitch -Operator convenience center -Welded main frame with capped tube ends Tires—Mainframe -16’ - 31’ 8 bolt 305/70 x R22.5 -36’ - 41’ (3 Section) 8 bolt 425/70 x R22.5 -41’ (5 Section) 10 bolt 425/65R x 22.5 -50’ (5 Section) 10 bolt 445-65R x 22.5
