Straw Reaper
Post-Harvest
• It has a robust integrated body design for long-life.
• The straw reaper comes with patented auger assembly.
• It comes with patented thresher assembly.
• Spring-loaded sheet metal clamps for propeller shaft & exhaust pipe.
• Stone trap tray, safety cover on all the moving parts.
• During working in the field, the safety alarm keeps an operator alert.
• Equipped with Grain storage tank.
• Pullies with the bush.
Specification
Description : JSR 57"
Main Drive: Gear Drive
Working Width (mm) : 2080
Body Width:57"
Tractor Power (HP):50 HP (Min)
Thresher Dia. : 20"
Thresher Blades:288
No. of Blade in Basket:35
Cutter Bar Size:7 Ft.
Wheel Size:7.00x19-10PR
No. of Blowers:2
Weight (Kg. Approx.):1820
Overall Dimension (mm)
Length x Width x Height:3710x2460x2110
RPM
Thresher (Main) @ 540
Blower Fan : 650 rpm. (With Pulley 12"-10")
Guide Drum:810 rpm.

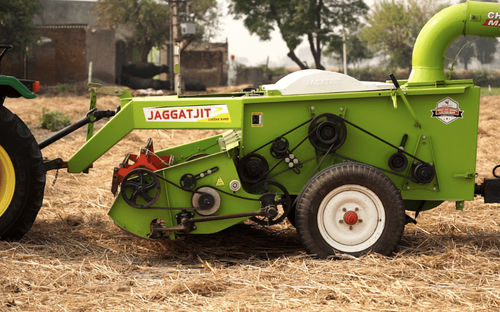

Jagatjit Straw Reaper performs four operations like cutting, threshing, cleaning and collection of straw in one pass. The Straw reaper gives best in class performance. It has heavy-duty gearbox and robust built body.
