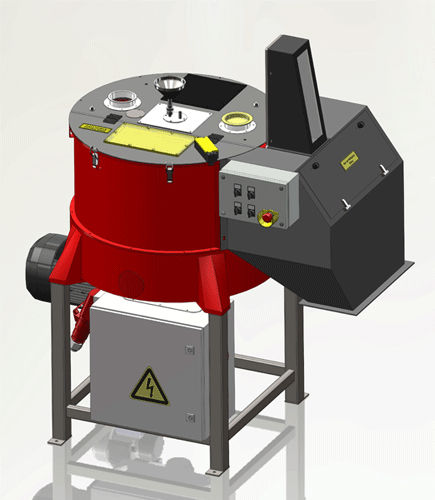

Seed treater with coating system CONCEPT 1.50

automatic

For batches up to 50 kg of seeds Automatical use as well as for coating as for pelleting Options dosing pump powder dosing mixing blades infinitely variable speed regulation pelleting configuration rotor chrome coated Features Features: stator cover, one half hingeable exhaust air vents high pressure fan beneath the rotor creates positive pressure to close the gap between rotor and stator halogen lamp for lighting in the mixing chamber 2 mixing rods for complete blending of the batch Operation: toggle switch for rotor drive (on-off)) toggle switch for high pressure fan (on-off) toggle switch for spinning disc drive (on-off) toggle switch for lighting in the mixing chamber (on-off) toggle switch for emptying the mixing chamber (on-off) potentiometer for rotor speed emergency stop Technical data MIXING SYSTEM: rotor-stator principle BATCH SIZE: up to 65 dm³ POWER SUPPLY: 400 V, 50 Hz, 32 A WEIGHT: 550 kg HEIGHT: 1,35 m FLOOR AREA: 1,5 m²
