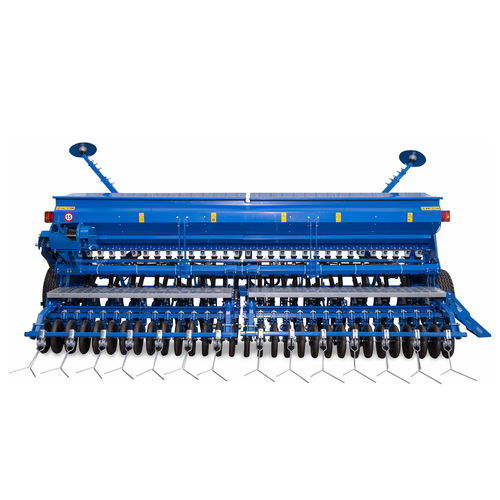

Mechanical seed drill SUP 400 DIAMANT
disctractor-mounted3-point hitch

mechanical seed drill
mechanical seed drill
Add to favorites
Compare this product


Characteristics

Seed distribution
mechanical
Type
disc
Other characteristics
tractor-mounted, 3-point hitch
Working width

4 m
(13'01" )

Inter-row spacing

13 cm
(5.1 in)

Power required

Max.: 140 ch
(140 hp)

Min.: 120 ch
(120 hp)

Working speed

Max.: 10 km/h
(6.2 mph)

Min.: 5 km/h
(3.1 mph)

Weight

2,100 kg
(4,629.7 lb)

Seed hopper volume

1,260 l
(332.9 gal)

Description

Destined for row sowing of crop plant seeds, the DIAMANT range consists of 2 models with a working width of 3 and 4 meters. They are equipped with a 72-speed Norton gearbox and the triple seed distributor offers the possibility to sow very small seeds in doses up to 2 kg / ha (rapeseed, clover, alfalfa, flax, poppy, millet, mustard) . The double disc coulter can be adjusted to a constant sowing depth of 8 cm • Large seed hopper capacity • Increased diameter of seed coulters • Equipped as standard with compaction wheels • Telescopic track markers with spherical discs • Equipped with triple seed dispenser offers the possibility to sow very small seeds (rapeseed, clover, alfalfa, flax, poppy, millet, mustard) in doses up to 2 kg / ha • Switching from seed type to normal or vice versa is done by simply pressing a button on the dispenser, moving from one position to another • The advantage of double disc coulters is that they do not collect plant debris, contributing to their shredding Optionally it can be provided with: with cover claws, compaction chain, technological system “2 or 3 closed rows” controlled from the tractor, with fertilization
