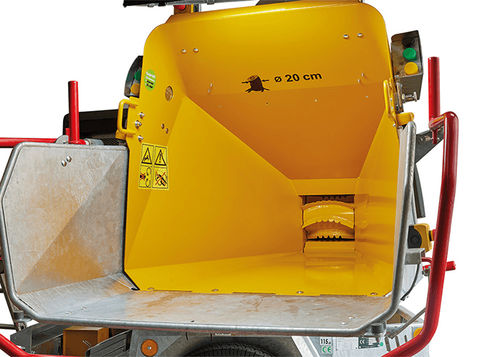

Towed wood chipper 325EX-D

diesel enginehydraulic supply

The 325EX-D is a real productivity turbo. No wonder, since it consists of a powerful Stage V 4-cylinder common rail turbo diesel engine from Kubota, a 270° swiveling feed hopper and a chipping unit that cuts logs with a diameter of 20 cm. Also on board: towing device with overrun brake and Soft-Dock ball coupling or DIN towing eye. Engine:KUBOTA 33 kW / 44,9 hp Engine capacity/Number of cylinders:1498 4-Cyl. Dimension working position (mm):4510 x 2020 x 2360 Max. diameter (cm):20 Machine weight (kg):1570 Dimension transport position (mm):3000 x 1560 x 2600 Gross vehicle weight chassis (kg):1400 Number of knives:2 Diameter feeder roll (mm):340 Diameter chopping disc (mm):655 Clutch:Freewheel Width feed roller (mm):240 Weight of chopping disc (kg):90 Feed roller:2 Height funnel (mm):760 Height discharge chute (mm):2330 Dimension funnel (mm):1600 x 1620 Number of axes:1 Turnable discharge chute:270° Chock/support:Series/Series Tire size:155/70R13 Turnable turret:270° Hoods:Safety hood made of metal Options:see list of options
