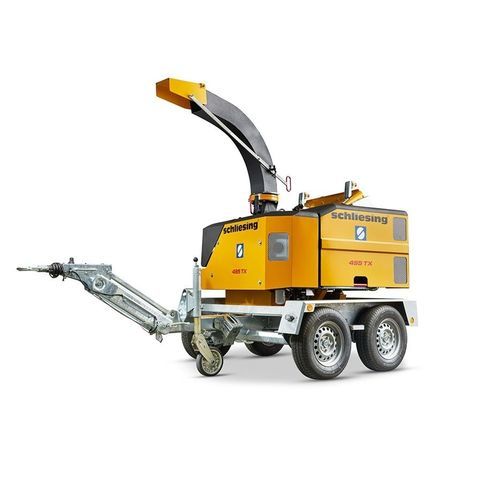

Towed wood chipper 495TX-D

diesel engine

Identical to the 495EX-D in equipment and performance data, but mounted on a fully galvanised tandem chassis with 4 185/70 R14 tires, height-adjustable towing device, overrun brake and optionally with Soft-Dock ball coupling or DIN towing eye. Turnable chipping body included. Engine:HATZ 55,4 kW / 75,3 hp Engine capacity/Number of cylinders:1592 4 Cyl Dimension working position (mm):1600 x 1200 x 2100 Max. diameter (cm):24 Machine weight (kg):2070 Dimension transport position (mm):4026 x 2040 x 2668 Gross vehicle weight chassis (kg):2000 or 2200 Number of knives:2 Diameter feeder roll (mm):140 Diameter chopping disc (mm):800 Clutch:Freewheel Width feed roller (mm):300 Weight of chopping disc (kg):158 Feed roller:7 Height funnel (mm):630 Height discharge chute (mm):2000 Dimension funnel (mm):1500 x 965 Number of axes:2 Turnable discharge chute:270° Chock/support:Series/Series Tire size:185/70R14 Turnable turret:270° Hoods:Safety hood made of metal Options:see list of options
