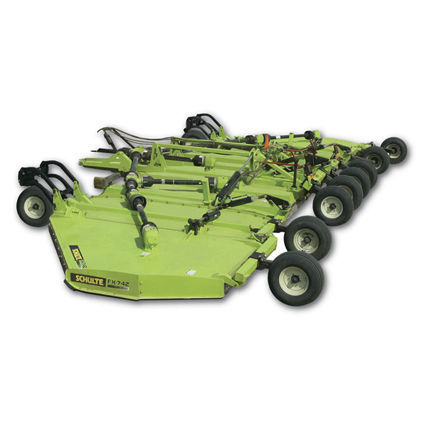

Agricultural rotary cutter FX-742

rear-mountfoldingPTO-driven

-42 foot (12.8m) cutting width is the world’s largest rotary cutter. Use 1 cutter where traditionally 2 or 3 cutters were needed. Cover more ground & reduce the number of tractors and fuel costs. - Unique 5-plex design flexibility allows for a 118” (3m) transport width. - Available with stump jumpers for pasture and grass maintenance or with Schulte’s fixed knife and baffle technology for mulching crop residue such as straw, corn or cotton stalks. - Unmatched rotary cutter reliability with a premium Bondioli & Pavesi SFT drive & gearbox system. - Size 10 main CV with an over running clutch provides worry free shut downs. - Fully compatible for all row crop cutting in 30”, 32”, 38”, 40” and one metre row spacing. - A parallel solid tongue hitch maintains even load on the tractor draw bar. - Full rubber grommet suspension across the entire unit reduces shock loading and maintains even cutting, even in the roughest of conditions. - Unique driveline arrangement allows for independent clutch protection for each down rotor. - A continuously welded 10 gauge domed deck adds strength and durability to our largest rotary cutter. SPECS Overall Width - 42.9ft (13.1m) Overall Length - 24.25ft (7.4m) Cutting Height - 2" - 16" (51mm - 406mm) Transport Width - 118" (3m) Row Crop Wheel Trans. Width - 146” (3.7m) Transport Height - 165" (13.75 ft or 4.2 m) Weight - 18,000lbs (8165 kg) depending upon configuration Hitch Weight - 6,500lbs (2950 kg) depending upon configuration
