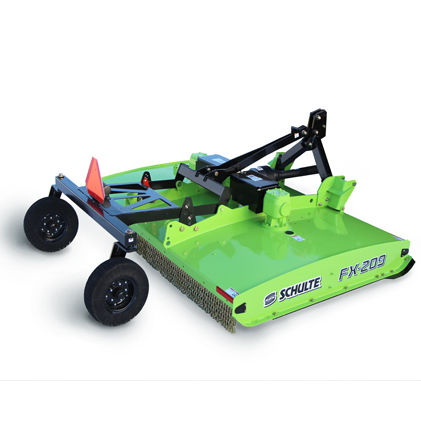

Agricultural rotary cutter FX-209

rear-mountPTO-drivenchain

- 9 foot / 3m 2 rotor rigid deck design - Rigid single domed 7 guage deck construction - 1/4” x 4” deck protection ring to guard against blade to deck damage - Two rotor base unit common to all configuration - Pull type, three point, semi mount and semi mount swing hitching options - 540 and 1000 RPM drive options - Heavy duty gear boxes and G8 drive lines - Pull type rotary cutter has the ability to accept open clevis, solid tongue, adjustable clevis or precision hitch options - Four tire options: solid laminate, severe duty, severe duty foam filled or forklift tires SPECS Overall Width - 116.5" ( 2.96 m) Skids Inboard 120.5" (3.06 m) Skids Outboard Overall Length - 162.5" (4.1 m) Trailing Unit, 127" (3.3 m), 3 Point / Semi Mount Swing / Semi Mount Transport Clearance - 11.5" (29.2 cm) Cutting Height - 2" - 13" (5.1 cm - 33 cm) Cutting Capacity - 3" (7.6 cm) Approximate Weight - 2400 lbs (1088 kg) Trailing, 2300 lbs (1043 kg) 3 Point, 2100 lbs (952 kg) Semi Mount 2860 lbs (1297 kg) Semi Mount Swing Hitch Type - Cat. II & III 3 Point / Semi Mount Swing (13” left or right swing), Semi Mount / Trailing Pull Deck Thickness - 7 GA (3/16", 4.6 mm) Side Skirt - 1/4" x 13.75" ( 6.35 mm x 337 mm)
