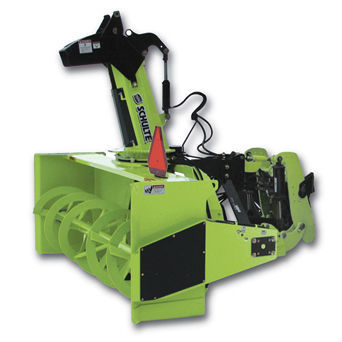

Mounted snow blower SDX-102

single-auger

- 102” wide cut & efficient twin stage design ideally suited to 85-140 HP tractors w/ SDX-102. - Highly efficient 30” four paddle fan on the SDX-102 and 26” four paddle fan on the SDX-840, with an open center and cupped blades results in improved throwing distance. - Heavily reinforced auger feeds snow to the fan and ensures that chunks of ice & hard packed snow are broken up before being discharged. - A replaceable cutting blade & replaceable adjustable skid shoes are standard. - A heavy duty gearbox with 1 5/8” splined shafts provides positive power delivery to the fan. - A 300 degree rotating chute design includes a UHMW bearing area to reduce freeze up of the chute. - Shear bolt protection for the fan and cross auger. SPECS Cutting Height - 35” (889mm) Overall Height - 96” (2.44m) Auger Diameter - 23” (584mm) Fan Diameter - 30” (762mm) Fan Type - 4 paddle Fan Shaft Diameter - 1 5/8” (41mm) Auger Drive Chain - #80 Weight (approximate) - 1675lbs (760kg) Adjust. Double Link Chute Deflector - Standard Hydraulic Chute Rotation Mechanism - Standard Replaceable Blade - Standard Adjustable Replaceable Skid Shoes - Standard Hitch Size - Cat II, Cat II quick hitch PTO Speed - 540 RPM Capacity - Dry snow / Wet snow - 388 tons/hr / 1222 tons/hr
