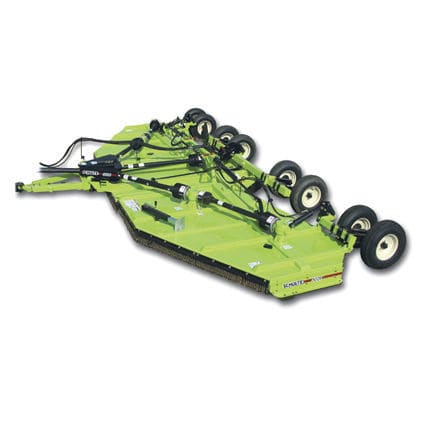

Row crop rotary cutter 5026

rear-mountfoldingPTO-driven

- 26 foot wide rotary cutter will make short work of your mowing or shredding. - 1000 RPM drive line with heavy duty slip clutches and 80 constant velocity u-joint. - Round skid pans on standard unit. - 2-piece replaceable skid shoes on wings. - 10 GA deck with deck protection rings. - 7.00 x 15 light truck tires in quantities of 6 or 8. - Hydraulic phasing cylinders for level lift. - Double acting wing lift cylinders with mechanical float. - Spring steel bushings at all major pivot points. - Suspension for centre and wing frames. - Transport locks for centre section and wings. - An optional fixed shredding blade kit is available for enhanced shredding. - 50 degree splitter box keeps drive lines short and machine more compact. SPECS Overall width - 321” maximum (8.15 m) Overall length - 205” maximum (5.13 m) Cutting height - 1” - 14” (25 - 356 mm) Transport clearance - 13” (330 mm) Overall Transport Width - 117” (2.98 m) Overall Transport Height - 148” (3.76 m) Shipping Weight, Wet - 6,800 lbs. (3,034 kg) Hitch Weight, Transport - 2,400 lbs. (1,089 kg) Cutting Capacity - 2” diameter material (50 mm)
