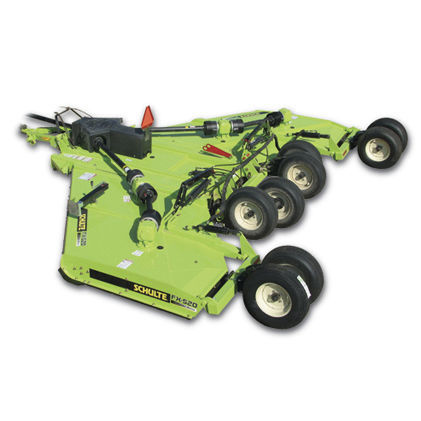

Row crop rotary cutter FX-520

rear-mountPTO-drivenchain

- This 20 foot wide, five rotor design optimizes cutting performance in a rotary cutter, increases productivity and delivers extremely even distribution over competitors 20’ models. - Unique 6 Gear Box layout, 260 hp divider box, 190 hp down boxes, 1000rpm driveline gives unsurpassed cutting performance with higher cut speeds. - 5 Slip Clutches, 1 at each down box protects the drive line. Also, shear pin at the input shaft on the divider box. - Continuously welded 7 ga modular deck design improves strength and reduces rusting. - Hitch Lift Assist helps to lift the mower over obstacles so as to prevent undo stress on blades and down shafts. - A hydraulic phasing cylinder system ensures an accurate parallel lift across the rotary cutter. SPECS Overall Width - 247” (6.2 m) Overall Length - 242” (6.15 m) Cutting Height - 2" - 17.5” (51 - 445 mm) depending on tire size Transport Width - 104" (2.6 m) Transport Height - 120” (3.05 m) Weight - 6525lbs. (2960 kg) (single chain, 6 tires, pans) Hitch Weight - 2280 lbs (1034kg) (single chain, 6 tires, pans) Cutting Capacity - 2" (51mm) (Fixed Knife Unit) 4" (102mm) (Pan Unit) Blade Tip Speed - 16000 ft/min (4900m/m) Blade Overlap - 6" (153mm) Divider Box rating - 260 hp (194kw)
