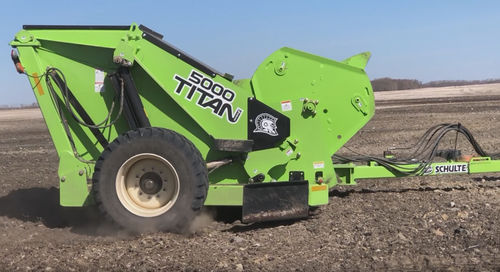

Tractor rock picker 5000 TITAN 2

unload to groundunload to trailertowed

- Spend more time picking and less time dumping with the Schulte Titan Rock Picker. - Super wide 7′ grate with wide or narrow spacing options. - Huge 5 cu. yd. bucket (actual stone picking capacity). - Big 22.5L x 16.1 14 ply tires for flotation to handle the loaded weight. - 6.5 foot tall dump height for larger piles and truck loading. - 450 BHN Steel teeth and T-iron tops for extra-long life. - Greater range of grate movement (lower picking, and higher lift). - Heavy Duty Magnaloy Hytrel coupling for Direct Drive Motor. - Six inch larger reel than the original Titan - Improved sweeping angle and combing of batts to rock and ground. - Larger 1.5″ batt pin vs 1.25″ on the original Titan - Heavier 2.5” grate pin & spring steel bushing vs 1.75″ on the original Titan SPECS Weight (Approximate) - 8930 lbs. (4060 kg) Overall length - 255” (6477 mm) Width with tires - 159” (4038 mm) Width less tires - 127” (3226 mm) Dumping height - 79” (2007 mm) Grate Width - 84” (2134 mm) Tire size - 22.5L x 6.1 x 14ply Required horsepower - 125 HP (93 kW) Required hydraulic pressure - 12 GPM Hydraulic motor displacement - 62.7 cu. inch/rev (1027 ml) Cushion Valve Cracking Pressure - 12 GPM@2200PSI, 4 remote outlets Recommended Reel Speed - 36 rpm Picks rocks - 2” - 27” (5cm - 69cm)
