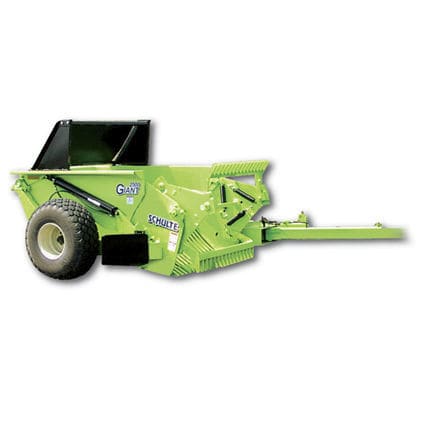

Tractor rock picker GIANT 2500

unload to trailertowed

- Durable tapered T-iron grate with 1-1/2” (38mm) thick teeth eliminates jamming while allowing soil to sift through for clean rock picking. - Batt tubing has 3/8” thick walls. - Wrap around, hard surfaced batt teeth offer strength and wear resistance. - Large heavy wire springs hold batts firmly in position and cushion shock loads. Spring coil diameter is reduced at the ends to minimize the possibility of breaking the spring hooks. - Floating grate protects the machine from damage due to large immovable rocks. - Pivoting hitch pole allows the rock picker to be quickly moved from the offset picking position to a centered transport position. - Large 16.5L X 16.1 tires provide superior flotation SPECS Weight (approximate) - 4970 lbs (2254 Kg) Overall Length - 205” (5207 mm) Overall width with tires - 114” (2896 mm) Overall width less tires - 91” (2311 mm) Picking width - 60” (1524 mm) Dumping height - 49” (1245 mm) Tire size - 16.5L X 16.1 Minimum tractor size - 75 HP (56Kw) Normal maximum ground speed - 4 MPH (6.4 KPH) Tractor hydraulic requirement - 12 GPM @1800 PSI, dual remote outlets Hydraulic motor displacement - 14.9 cubic inch/revolution Final drive ratio - 4:1 Drive sprockets - 11T and 45T #80
