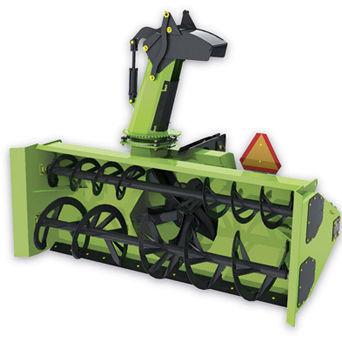

Mounted snow blower SDX-117

2-auger

- Schulte’s SDX-117 Snow Blower incorporates a 38” Five paddle open center cupped style fan which improves performance and is larger than most competitive designs on the market. - On the SDX-117, a 1000 RPM gear driven drive system is standard. - A size 8 Bondioli power shaft is included with shear pin protection to power the blower. - A Bondioli Italian made 1 piece gearbox drives this unit. - A heavily reinforced 23” bottom auger with formed struts ensures that hard chunks of snow and ice are fed into the fan with ease. - A 300 degree rotating chute includes a UHMW bearing area to reduce chute freeze up. - The new double deflector design reduces blowback when the chute deflector is placed in the down position. - Optional gauge wheels with tapered roller bearings available for highway or pavement use. - An optional 2” x 6” cylinder for chute deflection is available. SPECS Cutting Width - 117” (2.97m) Cutting Height - 45 1/2” (1.15m) Overall Height - 100” (2.54m) (With HD Chute) Auger Diameter - Bottom - 23” (58.4cm) Auger Diameter - Top - 14” (35.5cm) Fan Diameter - 38” (96.5cm) Fan Type - 5 paddle Fan Shaft Diameter - 2” (5.1cm) Auger Drive Chain - #80 Weight - 2750lbs (1247kg) Adjust. Double Linked Chute Deflector - Standard Hydraulic Chute Rotation Mechanism - Standard Replaceable Blade - Standard Adjustable Replaceable Skid Shoes - Standard
