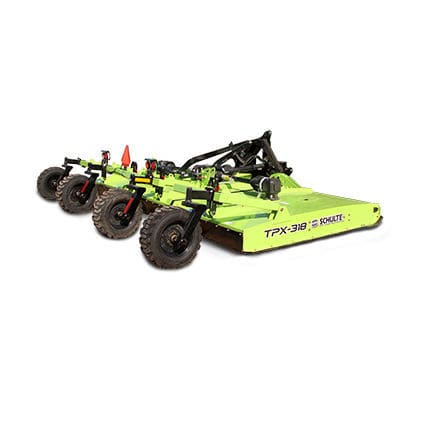

Row crop rotary cutter TPX-318

rear-mountfoldingPTO-driven

- 18.5 feet wide, with fixed knives and shrouding for optimum shredding performance and distribution when doing residue management in row crops like corn, cotton and sugar cane - Adjustable wheel standards for shredding in virtually all row crop spacings - Four position adjustable 3pt to keep cutter as close to the tractor as possible - Heavy duty rubber coupler on drive line for protection in harsh conditions - Fold up design for narrow transport width - Greasable bushings everywhere for longer life - Timed blades (without blade to blade contact) allow for a compact front to back length - Large flotation skid steer tires (10.5” X 27”) to minimize compaction - Easy height adjustment on rear tires - Double acting wings that can be locked off in rigid position for row crops or flex wing for ground contouring - Only one hydraulic circuit needed to operate this unit - Wide hinge gap to keep debris from falling on centre deck when folding up wings SPECS Splitter box - 210hp (157kw) Down boxes - 210hp (157kw) Tractor RPM - 1000 1000 - Cat 6 with clutch Cutter shafts - Cat 6 with rubber coupler Center blade tip speed - 16,308 (ft/min) Wing blade tip speed - 16,308 (ft/min) Deck thickness - 10 ga (.34cm) Cut capacity - 3.5” (8.9cm) Cut Width - 18.5’ (5.64m) Blades - 1/2” x 4” (1.3cm X 10.2cm) 3pt hitch - Cat 2 quick, cat 3, cat 3 quick, cat 4, cat 4 quick Tires - Skid steer - 10.5 (26.7cm) x 27” (68.6cm) Transport width - 116.5” (296cm) wing tip to wing tip Machine height - 8.75ft (2,67m)
