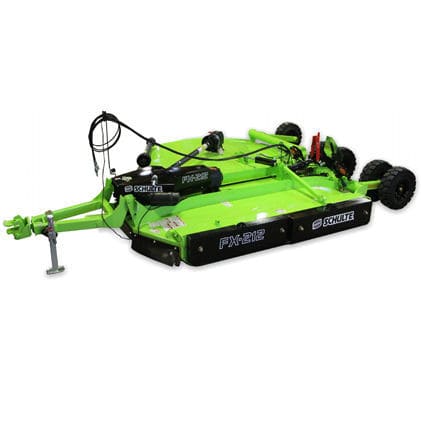

- Schulte’s first 12 foot, 2 rotor flex wing mower
- An ultra narrow transport width makes moving this unit extremely safe and simple
- Excellent choice for mowing crop residue, pastures, weeds, orchards and roadsides
- Single 7 gauge domed deck sheds water and debris and increases life of the deck with this easy clean feature
- Available 540rpm or 1000rpm 80° CV drive, 540 equal angle non CV drive or Pro Level Hitch
- Heavy duty gearboxes & drive system with spun formed 7 gauge stump jumpers ensures durability & perfect balance
SPECS
Overall width - 160” (5.8m)
Overall length - 208” (5.3m)
Transport width - 90” (2.2m)(Singles on wings) 95” (2.4m)(Duals on wings)
Transport height - 109” (2.77m)
Deck thickness - 7GA (3/16”, 4.6mm)
Weight, approx. - 5750 lbs (2614kg) (Depends on configuration)
Hitch weight, approx. - 2234 lbs (1066kg)(Depends on configuration)
Tractor PTO Speed - 540 or 1000rpm
Cutting Height - 1.75” to 16.75” (44.5mm to 425mm)
Ground clearance - 14.75” (42.5mm)
Cutting Capacity - 3.5” (89mm)
Blade Overlap - 6” (152mm)
Divider Gearbox Rating - 260HP (194kw)
Center & Wing Gearbox Rating - 210HP (157kw)
Output Shaft - 2.38” (60.3mm)
Blade Tip Speed 540 RPM - Center 15980 ft/min (4871m/min) Wing 16319 ft/min (4974m/min)
Blade Tip Speed 1000 RPM - Center 15974 ft/min (4869m/min) Wing 16581 ft/min (5054m/min)
Wing Working Range - 25° down to 80° up
Wing Floating Range - 25° down to 30° up
Drive Size Main - Cat. 6 CV (1000rpm) Cat. 6 CV (540 rpm)
Drive Size Center and Wing - Category 5
Side Skirt Depth & Thickness - 13.63” x .25” (346mm x 6.35mm)
Suspension - Rubber 3 puck grommet
