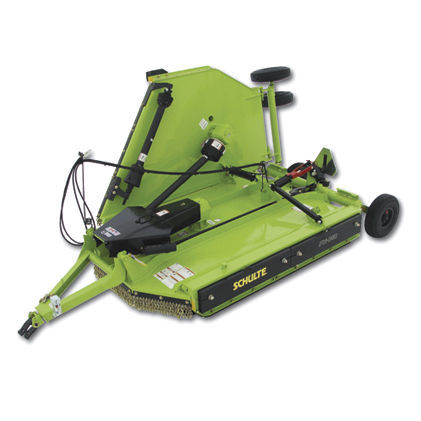

Agricultural rotary cutter FX-1200

rear-mountfoldingPTO-driven

- Our medium duty, 10 foot, rotary mower. - A single domed 7 ga continuously welded deck makes the cutter extremely easy to clean, prevents water pooling and rusting and helps shed debris. - 6.5 ” blade overlap and high blade tip speeds. - A four gearbox drive line with independent slip clutches. The FX-1800 utilizes heavy-duty and extremely reliable Bondioli gearboxes. The splitter has 1 3/4 ” 20 spline input and output shafts and is rated at 260hp. The centre and wing boxes have 1 3/4 ” 20 spine input shafts,2 3/8 ” down shafts and are rated at 210hp. - An 80 degree CV shaft allows for smooth power transmission during tight turns. The CV for 540 rpm is a Category 6 and for 1000 rpm is a category 5. The driveline on the rotary cutter itself employs self adjusting friction clutches to protect your investment and always operate at peak performance. All clutches are located under the main shield for ease of service. - Spun formed 7gauge stump jumpers (round skid pans) ensure durability and balance. -Available in 540 or 1000rpm drive. SPECS Overall Width - 137” (3.48m) Overall Length - 202” (5.13m) Transport Width - 93” (2.36m) (Singles on wings) 97.5" (2.47m) (Duals on wings) Transport Height - 84"(2.13m) Deck Thickness - 7GA (3/16",4.6mm) Weight - 5,600 lbs (2540kg) (Depends on configuration) Hitch Weight - 1602 lbs (727kg) (Depends on configuration) Tractor PTO Speed - 540 or 1000rpm Cutting Height - 1.75"to 16.75" (44.5mm to 425mm) Ground Clearance - 14.75"(42.5mm) Cutting Capacity - 4"(101.6mm) Blade Overlap - 6.5"(165.1mm) Divider Gearbox Rating - 260 HP (194kw) Center & Wing Gearbox Rating - 210 HP (142kw)
