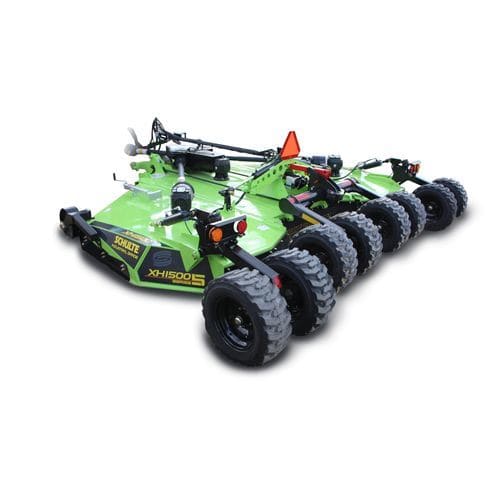

Agricultural rotary cutter XH-1500 SERIES 5

rear-mountPTO-drivenchain

- Extra heavy duty 15 foot, rotary cutter with 240 horsepower Bondioli gearboxes with oil level sight glass and 1-3/4″ input shafts and 3” (75mm) output shaft, Extra heavy duty 275hp divider box - Extra heavy duty Bondioli Cat 6 (G8) cutter deck drive lines - High-torque, self adjusting wing slip clutches ensure better performance in rough cutting - All grease points on the main mower body have been eliminated, spring steel greaseable bushings are used only in the walking axles. All other major pivot points are now use maintenance free, fibre wound bushings with 1 1/4″ diameter pins for strength. - Single domed, sweep clean deck design eliminates excess weight over competitive double-deck designs, eliminates build up of debris and prevents rusting on top side of deck - Walking or through axles are now available on both centre section and wings - Increased ground clearance and a cutting chamber depth of 15 3/8” (2″ greater than the Series 4) and an increased blade tip speed, result in an unsurpassed material flow with improved cutting speed - Extra large 10.5 X 27 skid steer tires, 29″ foam or air filled aircraft tires or 26″ laminated tires, allow for greater transport height along with improved performance in wet conditions - The XH-1500 Series 5 incorporates a floating hitch through the use of tension links. These links are connected from the hitch to the rear beam and are allowed to free float in one direction. This system allows the front of the cutter to easily pass over obstacles without causing damages to the tension links or putting unnecessary stress on the deck.
