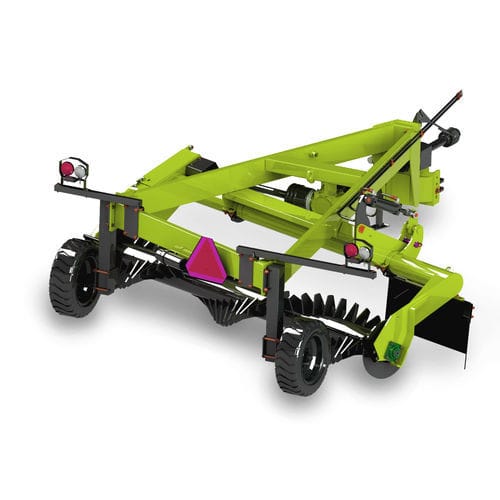

Stone rake SRW-1000

rotaryside deliverysingle-rotor

- The SRW1000 rock windrower windrows 2” to 25” rocks with ease, forming them into neat uniform rows. - Power is supplied to the windrower drum via a heavy duty PTO drive line which includes a slip clutch and shear bolt arrangement for protection against excessive shock loads. - The final drive chain is totally enclosed for longer service life. - The windrower drum is 10 feet (3.05 M) wide and is constructed of 8 5/8 inch (219mm) heavy wall HSS tube. - Hard surfaced, 5/8 inch (15.9mm) x 6 inch thick (152.4mm) long teeth are welded directly to the drum pipe, resulting in problem-free operation even in difficult conditions - This rock windrower is a good choice for RM’s and Counties for gravel reclamation SPECS Weight (approximate) - 2660 lbs. (1206 kg) Horsepower required - 40 - 150 hp (30 - 112 kw) Maximum Ground Speed - 5 mph (8 kph) Recommended Ground Speed - 2 mph (3 kph) Drum Speed - 117 rpm @ 540 rpm input Tires - 6.5 X 10, 10 ply forklift tires Transport Width - 134" (3.4 M) Transport Length - 179" (4.55 M)
