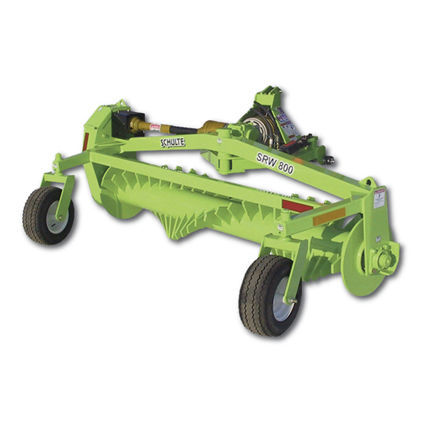

Stone rake SRW-800

rotaryside deliverysingle-rotor

- Windrows 2” to 25” rocks with ease, forming them into neat uniform rows - Power is supplied to the rock windrower drum, via heavy duty PTO drive line which includes a slip clutch and shear bolt arrangement for protection against excessive shock loads - The final drive chain is totally enclosed for longer service life - The rock windrower drum is constructed of 8 5/8” (219mm) heavy wall tube - Hard surfaced 5/8” thick (15.9mm) x 6” (152.4mm) long teeth are welded directly to the drum, resulting in problem-free operation - Narrow, 8.5’ transport width SPECS Weight (approximate) - 1350 lbs. (613 kg) Horsepower required - 35 hp to 100 hp (30 - 60 kw) Maximum Ground Speed - 5 mph (8kph) Recommended Ground Speed - 2 mph (3 kph) Drum Speed - 102 rpm @ 540 input Tires - 16.5/6.5 x 8 Transport Width - 8.5’ (2591 mm) Transport Length - 67” (1702 mm)
