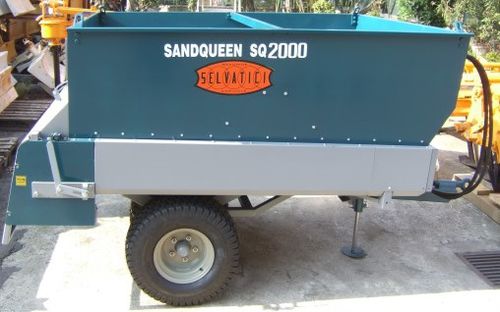

Towed sand spreader SQ 1000 SERIES - SQ 2000

mounted

SQ 1000 IS A BRUSH-TYPE SAND SPREADER SUITABLE FOR SPREADING, WITH TRULY UNPARALLELED SPREADING QUALITY AND UNIFORMITY, MATERIALS SUCH AS SAND, PEAT, LOAM AND OTHER GRANULAR MATERIALS. SQ 1000 IS A MACHINE SUITABLE FOR WORKING IN MEDIUM OR SMALL GREEN AREAS: ITS SPECIAL GEOMETRIC CONFORMATION, THE RESULT OF A DEEP DESIGN STUDY, OFFERS THE POSSIBILITY OF ACCESS THROUGH OPENINGS 120 CM WIDE. SQ 1000 REQUIRES AN AUXILIARY TRACTOR FOR MOTION AND DRIVES; MOVEMENT OF THE INNER HOPPER MAT AND THE ROTARY SCATTERING BRUSH ARE OBTAINED WITH AN AUXILIARY HYDRAULIC PUMP FROM THE TRACTOR ITSELF. THE ROTARY BRUSH MADE OF ANTI-ABRASIVE MATERIAL ENSURES PERFECT SPREADING UNIFORMITY WHILE THE REAR FLOW ADJUSTMENT SYSTEM, ALLOWS CONSTANT AND PRECISE OUTFLOW OF THE MATERIAL TO BE SPREAD; THROUGH A REAR LEVER IT IS ALSO POSSIBLE TO ADJUST THE LENGTH OF SPREADING AND CRUSHING OF THE MATERIAL BY VARYING THE ANGLE OF IMPACT BETWEEN THE MATERIAL AND THE SPREADING BRUSH. LENGTH: 2700 mm WIDTH: 1190 mm HEIGHT: 1640 mm VACUUM MASS: 600 kg POWER NEEDED: 11.7 kW MOTORS AND DRIVERS: WITH TRACTOR - Auxiliary Hydraulic Pump with Flow Rate 16liters/1' . SPREAD WIDTH: 1000 mm 2 TIRES 26x12.00x12 IN LINE. SQ 2000 IS A MACHINE SUITABLE FOR WORKING IN MEDIUM TO LARGE GREEN AREAS SUCH AS SOCCER FIELDS, GOLF COURSES, PARKS AND LARGE GARDENS. MAINTAINS THE SAME PREROGATIVES AS THE SQ 1000 HAVING, HOWEVER, A HIGHER CAPACITY SINCE THE HOPPER CARRIES UP TO 2 CUBIC METERS (2000L) AND THE SCATTERING WIDTH IS GREATER (170 CM) SO IT NEEDS MORE POWER (MIN 25 HP). LENGTH: 3200 mm WIDTH: 1870 mm HEIGHT: 1640 mm VACUUM MASS: 900 kg POWER NEEDED: 17.9 kW
