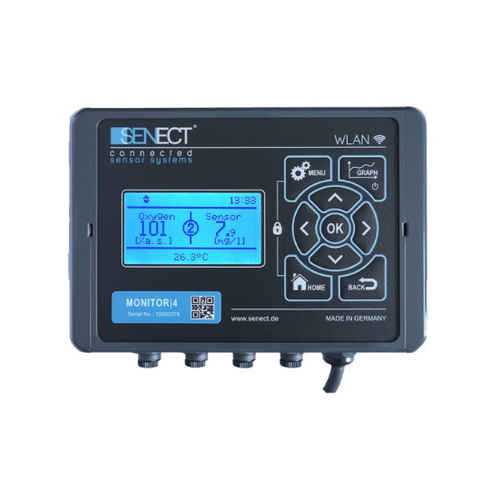

Aquaculture monitoring system 4

temperatureleveloxygen

Dimensions:191 x 140 x 60 mm Power supply:100 - 240 V AC, 50/60 Hz or 24 VDC Sensor-Input-Ports:4 x Sensor (compatible to all Senect sensors) Output ports:none Ingress protection:IP54 Data transmission:2.4 GHz WLAN, remote access via dynamic DNS, port forwarding and IPv4 WLAN Monitoring Controller •Monitoring water quality with up to 4 sensors -e.g. 1 x dissolved oxygen, 1 x pH, 1 x ORP, 1 x conductivity (temperature inclusive with O2S and conductivity sensors) -or 2 x water level and 2 x dissoved oxygen (for two ponds) •Free choice of SENECT sensors •Embedded barometer sensor •Data storage •Wireless data transmission via WLAN - Remote access and alarming by and on your android or iOS phone The SENECT System •A modular, decentralized control system: -Simple expansion of existing plants -Increased safety through small, distributed units -Inexpensive installation due to low cabling effort •Wireless data connection via WLAN -Updates via WLAN: Install new features free of charge -Inexpensive installation: No network cables necessary
