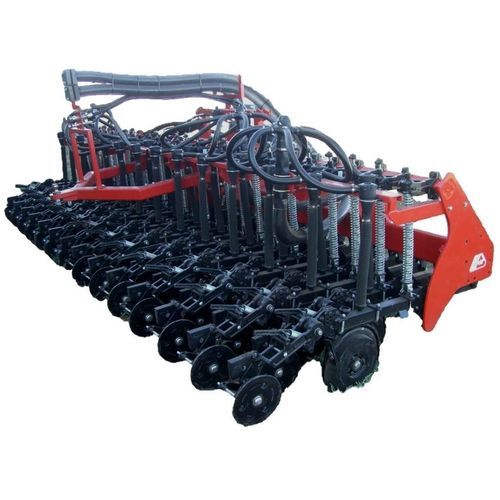

Pneumatic seed drill TLS

discfoldingno-till

Tatu double disc opener with 15” discs fitted with leading disc for easy penetration, cast cover wheel for perfect seed contact,spacing’s from 155mm out to 375mm, ideal for row crop farmers and broadacre, long spring allows excellent adjustment for all jobs and can handle rocky soils. Fit to front or rear mount air box. Simple, reliable and versatile in all soil types. 8m folded width down to 3m, over 4.8m Quality Strong Frame Built from a high quality, locally manufactured frame of 200x200x9.5mm wing sections and 200x100x9.5mm chassis section. The frame is fully powder coated in the 3 stage process including an undercoat which adds to the robustness of the finish. Tatu Row Units 2x 15″ double discs with a long, triple spring design allows for unmatched ground following. The cast closing wheel ensures excellent seed to soil contact and that the seed slot is closed effectively. The two discs are on a 6 degree angle to one another which means low soil disturbance and an excellent no-till seeding job. Ground Following The secret to the Serafin TLS’s success is the massive amount of travel in the row units allowing it to work in the most challenging, undulating conditions. The triple springs allow each unit to independently travel 400mm vertically without effecting the unit next to it. It is also great for raised beds in irrigation situations.
