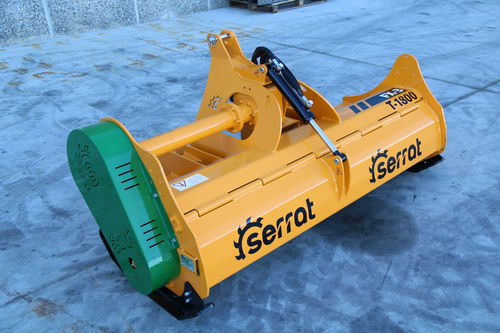

Mounted mulcher FX3flailknifeforestry
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- flail, knife
- Applications
- forestry
- Number of hammers
- 20 hammers, 16 hammers, 12 hammers
- Number of knives
- 24 knives, 26 knives, 18 knives, 22 knives
- Other characteristic
- PTO-driven, hydraulic, for tractors, fixed
- Cutting width
1,400 mm, 1,600 mm, 1,800 mm, 2,000 mm
(55.12 in, 62.99 in, 70.87 in)- Rotational speed
540 rpm
(3,393 rad.min-1)- Tractor power
Max.: 100 ch
(100 hp)Min.: 75 ch
(75 hp)- Weight
789 kg, 862 kg, 924 kg, 966 kg
(1,739.45 lb, 1,900.38 lb, 2,037.07 lb, 2,129.67 lb)
Description
Forestry mulcher for standard tractors or crawler tractor between 40 and 100 HP.
Suitable for the cleaning of brushwood, which favors the growth of trees, the reclamation of land, the maintenance and restoration of banks, the maintenance of areas under power lines, forestry roads, fire-blocking lines.
It incorporates rotor POLSER+ of 470 mm of diameter.
Steel-plate chassis, thickness 8 mm.
Rotor POLSER + of Ø 470 mm.
Gearbox SERRAT.
3 XPC side belt transmission.
Swinging 360° forged forestry hammers SERRAT or fixed tooth with tip in tungsten.
Supports of bearing rotor in steel.
Oscillating bearings of double row of rollers.
Front protection curtain.
Steel counter hammers.
Front skid shoes.
Rear hydraulic hood.
Model built under EC Normative.
Safety indicators visible to personnel.
