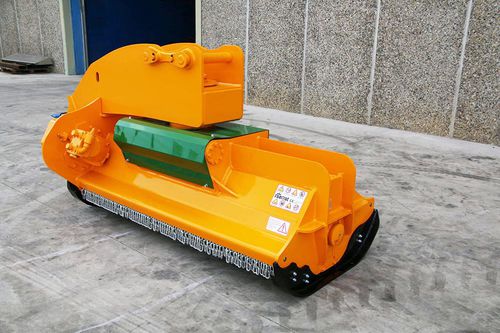

Mounted mulcher CABEZAL F4
flailknifeforestry

Mounted mulcher - CABEZAL F4 - Serrat Broyeurs - flail / knife / forestry
Mounted mulcher - CABEZAL F4 - Serrat Broyeurs - flail / knife / forestry
Mounted mulcher - CABEZAL F4 - Serrat Broyeurs - flail / knife / forestry - image - 2
Mounted mulcher - CABEZAL F4 - Serrat Broyeurs - flail / knife / forestry - image - 3
Mounted mulcher - CABEZAL F4 - Serrat Broyeurs - flail / knife / forestry - image - 4
Mounted mulcher - CABEZAL F4 - Serrat Broyeurs - flail / knife / forestry - image - 5
Mounted mulcher - CABEZAL F4 - Serrat Broyeurs - flail / knife / forestry - image - 6
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
flail, knife
Applications
forestry
Number of hammers
16 hammers, 12 hammers, 9 hammers
Number of knives
40 knives, 32 knives, 44 knives, 14 knives
Other characteristic
PTO-driven, hydraulic, for excavators
Cutting width

Max.: 2,000 mm
(78.74 in)

Min.: 1,000 mm
(39.37 in)

Rotational speed

2,000 rpm
(12,566 rad.min-1)

Weight

Max.: 1,428 kg
(3,148.2 lb)

Min.: 900 kg
(1,984.16 lb)

Description

Adaptable for excavators and special carriers having a weight between 15 and 30 Ton. Steel-plate chassis of 10 mm with the hooking screwed on the top of the mulcher, which reinforce the chassis, giving the possibility of several positions of use. Suitable for the maintenance of forest, riverbanks, bushes up to 30 cm of diameter. Non-wear steel-plate chassis, thickness 10 mm. Rotor POLSER + of Ø 550 mm. Mulcher for excavators having a weight between 15 and 30 t. 4 XPC side belt transmission. Double safety chains. Bearings of the rotor of high rotation speed. Hydraulic engine with pistons. Valve of recirculation incorporated into the motor. Front skid shoes. Compact drive cover. Swinging forged forestry hammers 360° or fixed tooth with tip in tungsten. Model built under EC Normative. Safety indicators visible to personnel.
