Mounted mulcher CABEZAL F5
flailknifeforestry

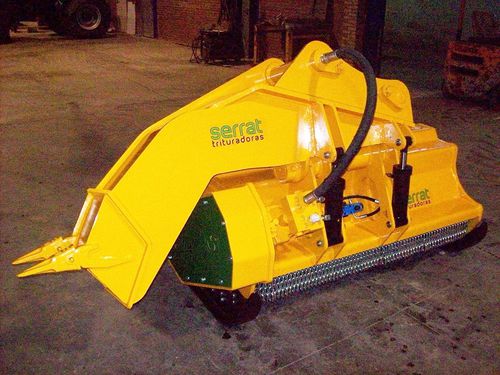

Mounted mulcher - CABEZAL F5 - Serrat Broyeurs - flail / knife / forestry
Mounted mulcher - CABEZAL F5 - Serrat Broyeurs - flail / knife / forestry
Mounted mulcher - CABEZAL F5 - Serrat Broyeurs - flail / knife / forestry - image - 2
Mounted mulcher - CABEZAL F5 - Serrat Broyeurs - flail / knife / forestry - image - 3
Mounted mulcher - CABEZAL F5 - Serrat Broyeurs - flail / knife / forestry - image - 4
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
flail, knife
Applications
forestry
Number of hammers
20 hammers
Number of knives
26 knives, 30 knives
Other characteristic
PTO-driven, hydraulic, for excavators, fixed
Cutting width

2,000 mm, 2,300 mm
(78.74 in, 90.55 in)

Rotational speed

2,000 rpm
(12,566 rad.min-1)

Weight

1,820 kg, 2,250 kg
(4,012.41 lb, 4,960.4 lb)

Description

Adaptable for excavators and special carriers having a weight between 25 and 50 Ton. Steel-plate chassis of 10 mm with the hooking screwed on the top of the mulcher which reinforce the chassis, giving the possibility of several positions of use. Suitable for the maintenance of forest, riverbanks, bushes up to 25 cm of diameter. Non-wear steel-plate chassis, thickness 10 mm. Rotor POLSER + of Ø 625 mm. Mulcher for excavators having a weight between 25 and 50 t. 5 XPC side belt transmission. Double safety chains. Swinging forged forestry hammers 360° or fixed tooth with tip in tungsten. Bearings of the rotor of high rotation speed. Hydraulic engine with pistons. Valve of recirculation incorporated into the motor. Front skid shoes. Model built under EC Normative. Safety indicators visible to personnel.
