Mounted mulcher CABEZAL MF3
hammerknifeforestry

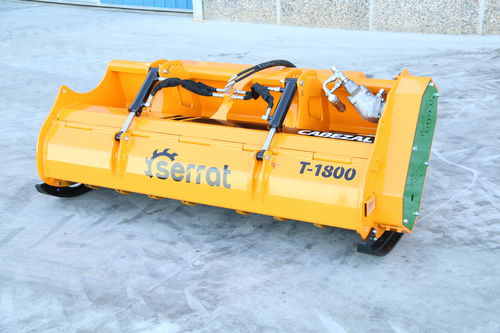

Mounted mulcher - CABEZAL MF3 - Serrat Broyeurs - hammer / knife / forestry
Mounted mulcher - CABEZAL MF3 - Serrat Broyeurs - hammer / knife / forestry
Mounted mulcher - CABEZAL MF3 - Serrat Broyeurs - hammer / knife / forestry - image - 2
Mounted mulcher - CABEZAL MF3 - Serrat Broyeurs - hammer / knife / forestry - image - 3
Mounted mulcher - CABEZAL MF3 - Serrat Broyeurs - hammer / knife / forestry - image - 4
Mounted mulcher - CABEZAL MF3 - Serrat Broyeurs - hammer / knife / forestry - image - 5
Mounted mulcher - CABEZAL MF3 - Serrat Broyeurs - hammer / knife / forestry - image - 6
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
hammer, knife
Applications
forestry
Number of hammers
20 hammers, 16 hammers, 12 hammers
Number of knives
24 knives, 26 knives, 18 knives, 22 knives
Other characteristic
PTO-driven, hydraulic, fixed
Cutting width

1,400 mm, 1,600 mm, 1,800 mm, 2,000 mm
(55.12 in, 62.99 in, 70.87 in, 78.74 in)

Rotational speed

2,200 rpm
(13,823 rad.min-1)

Weight

793 kg, 897 kg, 957 kg, 1,015 kg
(1,748.27 lb, 1,977.55 lb, 2,109.82 lb, 2,237.69 lb)

Description

The mulcher Cabezal MF-3 is a standard flow mulching attachment suitable to compact track loader having a weight between 3 and 7 Ton. Suitable for the maintenance of greenspaces, forest maintenance, industrial gardening and bushes up to 10 cm for a rotor with swinging hammers, and up to 35 cm of diameter with a rotor with fixed tooth carbide. Non-wear steel-plate chassis, thickness 8 mm. Rotor POLSER + of Ø 400 mm. Mulcher for head compact track loader having a weight between 3 and 7 t. 3 XPC side belt transmission. Double safety chains. Bearings of the rotor of high rotation speed. Hydraulic engine with pistons. Front skid shoes. Swinging small forged forestry hammers 360° or fixed tooth with tip in tungsten. Compact drive cover. Valve of recirculation incorporated into the motor. Hydraulic opening rear door. Model built under EC Normative. Safety indicators visible to personnel.
