Mounted mulching head TOTEM 4
flailfor row cropsPTO-driven

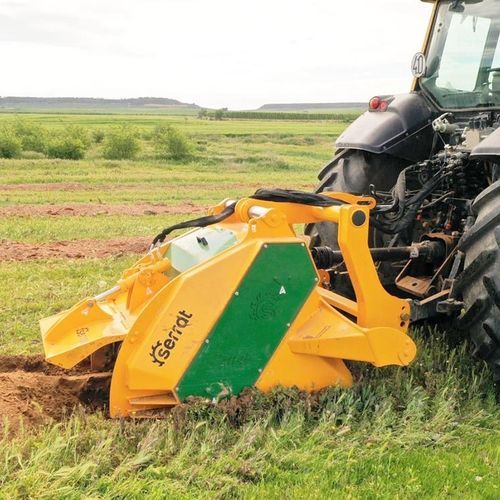

Mounted mulching head - TOTEM 4 - Serrat Broyeurs - flail / for row crops / PTO-driven
Mounted mulching head - TOTEM 4 - Serrat Broyeurs - flail / for row crops / PTO-driven
Mounted mulching head - TOTEM 4 - Serrat Broyeurs - flail / for row crops / PTO-driven - image - 2
Mounted mulching head - TOTEM 4 - Serrat Broyeurs - flail / for row crops / PTO-driven - image - 3
Mounted mulching head - TOTEM 4 - Serrat Broyeurs - flail / for row crops / PTO-driven - image - 4
Mounted mulching head - TOTEM 4 - Serrat Broyeurs - flail / for row crops / PTO-driven - image - 5
Mounted mulching head - TOTEM 4 - Serrat Broyeurs - flail / for row crops / PTO-driven - image - 6
Mounted mulching head - TOTEM 4 - Serrat Broyeurs - flail / for row crops / PTO-driven - image - 7
Add to favorites
Compare this product


Characteristics

Type
mounted
Technology
flail
Applications
for row crops
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

1,100 mm
(43.31 in)

Rotational speed

1,000 rpm
(6,283 rad.min-1)

Tractor power

Max.: 250 ch
(250 hp)

Min.: 180 ch
(180 hp)

Weight

2,700 kg
(5,952.48 lb)

Description

Soil preparation machine up to a depth of 40 cm, for tractors between 180 – 250 HP. It mulchs the stumps of old plantations, leaving a soft ground for the next plantation. Steel-plate chassis, thickness 10 mm. Rotor FIXE TOP of Ø 900 mm. Gearbox with freewheel included. Double synchronous belt transmission. Supports of bearing rotor in steel. Oscillating bearings of double row of rollers. Double ploughshare for opening the land. Front skid shoes. Rear hydraulic hood. Internal reinforcements in anti-wear chassis. System antiwire in rotor. Compact drive cover. Model built under EC Normative. Safety indicators visible to personnel.
