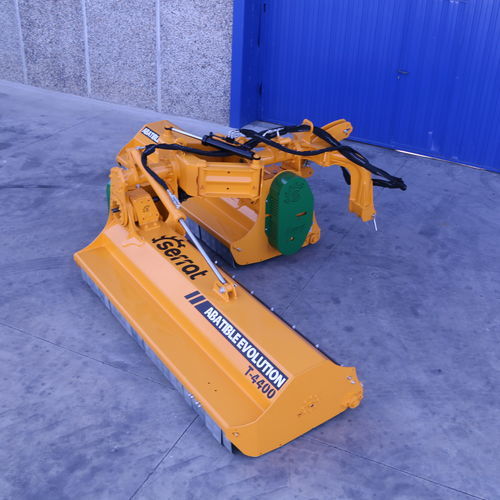

Mounted mulcher ABATIBLE EVOLUTION

hammerfor orchards20 hammers

Mulcher conceived for very large farms and agricultural contractors. Robust machine designed for very intensive mulching, intended for mulching grass in orchards, nurseries and park maintenance, straw, maize stalks, and on fallow land. Depending on the plantation, different working widths can be set between 3,60m and 5,40m thanks to our hydraulic beam. The innovative and practical device for opening and closing the rotors is equipped with special hitches and safety valves for transport. The 480mm diameter mulching rotor delivers maximum throughput. A heavy steel beam forms a fixed leveling point, relative to which the two rotor structure can be lifted and lowered, the two rotor overlap and can work independently of each other. It gives also better users visibility across the whole working width. The inside belt transmission allows us to approach the lateral edges as close as possible to the feet of the trees. Steel-plate chassis, thickness 10 mm. Rotor POLSER of Ø 450 mm. Gearbox SERRAT. 2 x 3 XPC side belt transmission. Forged agricultural hammers Serrat. Hammers guaranteed against breakage. GIROSTOP System. Supports of bearing rotor in steel. Oscillating bearings of double row of rollers. Front protection curtain. Obturations antiwire in rotor. Double bearing on rear roller. Rear height-adjustable rollers. PTO 1.000 rpm. Hydraulic folding exclusive design by SERRAT. Reversible. Model built under EC Normative. Safety indicators visible to personnel.
