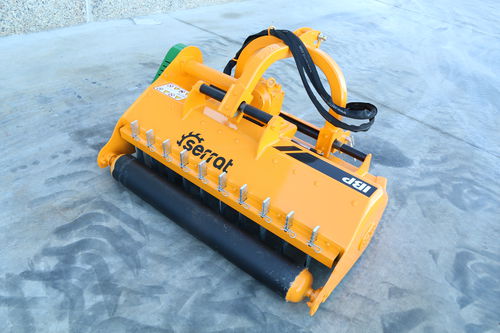

Mounted mulcher IBPhammer16 hammers12 hammers
Add to favorites
Compare this product
Characteristics
- Type
- mounted
- Technology
- hammer
- Number of hammers
- 16 hammers, 12 hammers
- Other characteristic
- PTO-driven, hydraulic, for tractors
- Cutting width
Max.: 2,000 mm
(78.74 in)Min.: 900 mm
(35.43 in)- Rotational speed
540 rpm
(3,393 rad.min-1)- Tractor power
Max.: 80 ch
(80 hp)Min.: 60 ch
(60 hp)- Weight
Max.: 480 kg
(1,058.22 lb)Min.: 290 kg
(639.34 lb)
Description
Mulcher designed for tractors between 30 HP to 80 HP for the maintenance of vegetable mantle and for the elimination of remains of pruning up to 5 cm.
Steel-plate chassis, thickness 6 mm.
Tubular rotor of Ø 400 mm.
Gearbox with freewheel included.
Synchronous belts transmission.
Forged hammers SERRAT special “grass”
2 lines of counter knives screwed in. GIROSTOP System.
Supports of bearing rotor in steel.
Oscillating bearings of double row of rollers.
Supports of bearing rotor in steel.
Rear hood with double position.
Double bearing on rear roller.
Height-adjustable rear roller.
Turret with 4 hooking positions.
Width cover belts 84 mm.
Model built under EC Normative.
Safety indicators visible to personnel.
