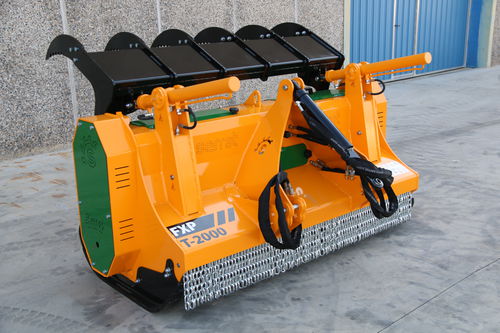

Mounted mulcher FX PLUS

hammerknifeforestry

Heavy duty forestry mulcher for tractors between 120 and 230 HP. Suitable for the cleaning of brushwood, which favors the growth of trees, the reclamation of land, the maintenance and restoration of banks, the maintenance of areas under power lines, forestry roads, fire blocking lines, etc. Rotor of forest conception with swinging hammers of trapezoidal shape or fixed tooth carbide. The gearbox is put off with regard to the rotor to reduce the angulation of the transmission. It incorporates rotor POLSER+ of 550 mm of diameter. Hooking: fixed and movable. Steel-plate chassis, thickness 10 mm. Rotor POLSER + of Ø 550 mm. Gearbox with freewheel included. 2 x 3 XPC side belt transmission. Swinging 360° forged forestry hammers SERRAT or fixed tooth with tip in tungsten. Supports of bearing rotor in steel. Oscillating bearings of double row of rollers. Front protection curtain. Steel counter hammers. Front skid shoes. Rear hydraulic hood. System antiwire in rotor. Compact drive cover. Hydraulic pushing frame. Third hydraulic point. Model built under EC Normative. Safety indicators visible to personnel.
