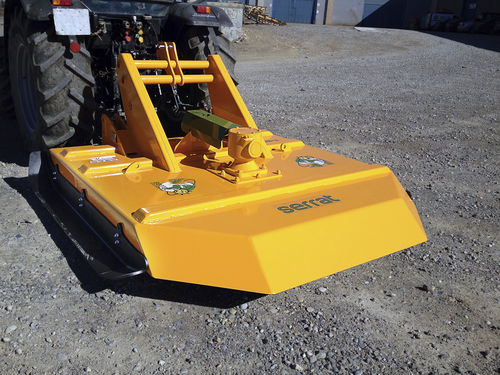

Mounted mulcher FXCS
flailforestryPTO-driven

mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
mounted mulcher
Add to favorites
Compare this product

Go to the Serrat Broyeurs website for more information

Characteristics

Type
mounted
Technology
flail
Applications
forestry
Other characteristic
PTO-driven, hydraulic, for tractors
Cutting width

1,400 mm, 1,600 mm, 1,800 mm, 2,000 mm
(55.12 in, 62.99 in, 70.87 in, 78.74 in)

Rotational speed

540 rpm
(3,393 rad.min-1)

Tractor power

Max.: 88 kW
(119.6 hp)

Min.: 45 kW
(61.2 hp)

Weight

600 kg, 650 kg, 800 kg, 1,120 kg
(1,322.77 lb, 1,433 lb, 1,763.7 lb, 2,469.18 lb)

Description

Forestry heavy brush culter with unit-body construction of 10 mm of thickness. Gearbox up to 120 HP. Suitable for work of clearing brush, creation of grassland, follow fields and electrical lines, with bushes in foot up to 6 cm. Frame with unit-body construction. Top reinforcements and plates antispoil lower, to avoid the shock of the chains against the chassis of 5 mm. Plate with system of anchorage of chains with linkage parts, diameter 16. Steel-plate closed chassis, thickness of 10 mm + 5 mm. SERRAT rotor with 4 chains with links of Ø 16 mm. Front protection curtain. Lower reinforcements (links of chains). Top reinforcements. Transmission with freewheel. High-power gearbox. Model built under EC Normative. Safety indicators visible to personnel.
