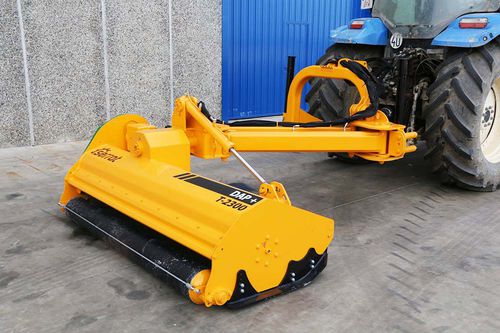

Mounted mulcher DAP +offsethammerroadside
Add to favorites
Compare this product
Characteristics
- Type
- mounted, offset
- Technology
- hammer
- Applications
- roadside
- Number of hammers
- 20 hammers, 16 hammers
- Other characteristic
- PTO-driven, hydraulic, for tractors, offset
- Cutting width
1,800 mm, 2,000 mm, 2,300 mm, 2,500 mm
(70.87 in, 78.74 in, 90.55 in, 98.43 in)- Rotational speed
1,000 rpm
(6,283 rad.min-1)- Tractor power
Min.: 120 ch
(120 hp)Max.: 160 ch
(160 hp)- Weight
1,655 kg, 1,710 kg, 1,790 kg, 1,835 kg
(3,648.65 lb, 3,769.9 lb, 3,946.27 lb, 4,045.48 lb)
Description
Offset mulcher of high range with agricultural rotor, for works in agricultural margins, Banks, highways, channels, roads and others clears of public works for tractors between 120-160 HP.
It incorporates safety system with springs. Angulation +90º / -65º Rotor POLSER of 550 º
•Non-wear steel-plate chassis, thickness 10 mm.
•Rotor POLSER of Ø 550 mm.
•Gearbox SERRAT.
•4 XPC side belt transmission.
•Double transmission with a centre shaft and homocinetic knot on the second transmission.
•Supports of bearing rotor in steel.
•Height-adjustable rear roller.
•PTO 1.000 rpm.
•Oscillating bearings of double row of rollers.
•Front protection curtain.
•Front skid shoes.
•Double bearing on rear roller.
•Angulation +90º / -50º.
•Hydraulic lateral offset mulcher.
•Safety valve.
•Model built under EC Normative.
•Safety indicators visible to personnel.
