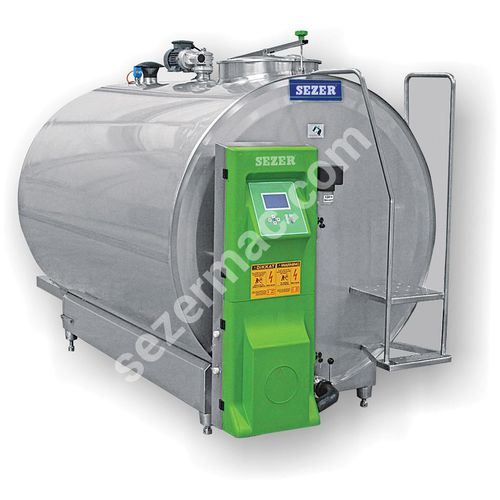

Milk tank

pressurehorizontalstainless steel

Completely made of AISI 304 quality stainless steel 1st wall base is 2mm and 0,8 mm Ep type heat transfer plate is coupled with wall Isolation wall is 1,2 mm AISI 304 quality stainless steel 1 piece special design 0,34 HP 0,34 rpm gearbox and stainless steel agitator coupled with gearbox. Agitator is designed according to milk structure protection Product Outlet DN 50 male butterfly valve Insulation material; HCFC free water based high density polyurethane foam and isolation thickness is 65 mm. AISI 304 quality stainless steel Ø 500 mm manhole cover and Ø 100 mm product inlet exist Manual with measuring table and calibrated for each tank Spring cover system and Ø 200 mm product inlet. Special manual scale with 3-4 ‰ sensitivity rate 1 piece stainless steel ladder Ø 90 air vent AISI 304 quan Designed to leave 0 liquid in the tank after discharge Tank body coupled on whole chassis Welding; Argon Tig welding system applied and welded areas are 1 st class smoothly polished Cooling evaporator (rollbond) is tested against 40 bar test pressure.
