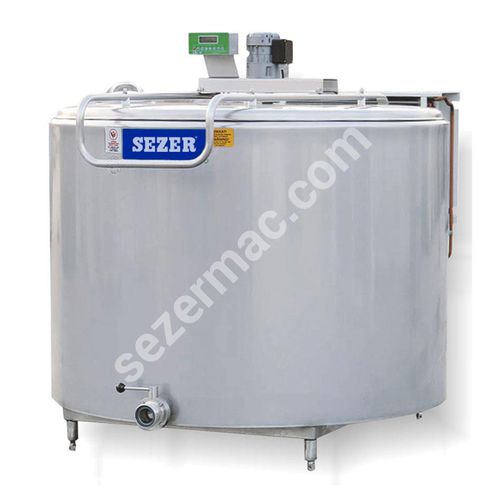

Milk tank
verticalstainless steelwith cooling system

Milk tank - SEZER TARIM ve Sagim Teknolojileri San. ve Tic. Ltd. Sirketi - vertical / stainless steel / with cooling system

Milk tank - SEZER TARIM ve Sagim Teknolojileri San. ve Tic. Ltd. Sirketi - vertical / stainless steel / with cooling system - image - 2

Milk tank - SEZER TARIM ve Sagim Teknolojileri San. ve Tic. Ltd. Sirketi - vertical / stainless steel / with cooling system - image - 3

Milk tank - SEZER TARIM ve Sagim Teknolojileri San. ve Tic. Ltd. Sirketi - vertical / stainless steel / with cooling system - image - 4

Milk tank - SEZER TARIM ve Sagim Teknolojileri San. ve Tic. Ltd. Sirketi - vertical / stainless steel / with cooling system - image - 5

Milk tank - SEZER TARIM ve Sagim Teknolojileri San. ve Tic. Ltd. Sirketi - vertical / stainless steel / with cooling system - image - 6

Add to favorites

Compare this product

Characteristics

Fluid: for milk
Construction: vertical
Material: stainless steel
Other characteristic: with cooling system
Volume: 2,000 l
(528 gal)

Description

Completely made of AISI 304 quality stainless steel 1st wall base is 2mm and 0,8 mm Ep type heat transfer plate is coupled with wall 1st wall body is 1,5 mm Isolation wall is 1mm AISI 304 quality stainless steel 1 piece 25 W 25 rpm gearbox and stainless steel agitator coupled with gearbox. Agitator is designed according to milk structure protection Product Outlet DN 50 male butterfly valve Insulation material; HCFC free water based high density polyurethane foam and isolation thickness is 60 mm. Spring cover system and Ø 200 mm product inlet. Special manual scale with 3-4 ‰ sensitivity rate Designed to leave 0 liquid in the tank after discharge Tank body coupled on whole chassis Welding; Argon Tig welding system applied and welded areas are 1 st class smoothly polished Cooling evaporator (rollbond) is tested against 40 bar test pressure.
