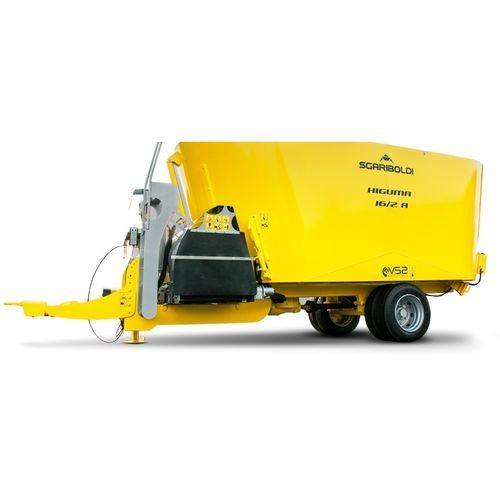

Vertical mixing wagon HIGUMA

towedfront discharge2-auger

Equipped with a vertical mixing system and available in single or twin auger versions. Higuma’s ultra-simple construction and compact design make it perfect for accessing even the narrowest spaces. ALSO AVAILABLE IN A STATIONARY VERSION WITH AN ELECTRIC OR DIESEL ENGINE. QUICK AND EFFICIENT CUTTING .Special auger with continuous spiral screws .Special toothed blades .Extra thick tank walls and bottom ROBUST AND FUNCTIONAL TANK .Extra thick walls and bottom .Highly resistant, stainless steel square cells for the weighing system .Optional STAINLESS STEEL covers and SPECIAL STEEL SET FOR ALL REQUIREMENTS .HIGUMA / A with forage containment ring .HIGUMA / S with tapered tank extension MACHINE EQUIPMENT .Vertical mixer-feeder with one and two augers .Floor 20 mm thick, side plates 8 mm, auger flights Kodiak 15 mm .Adjustable hitch .Direct discharge on the right front side .Industrial planetary gearboxes .two speeds auger .Discharge hatch operated by tractor hydraulic valve (1 double effect, oil-flow 30 l/min – 140 bar) .Manual side jack .Two manual counter knives .Weighing system whit not programmable monitor and 3 load cells .Protected PTO shaft .Retainer ring .Non-breaking axle
