Automated guidance system T100
USB4GWiFi

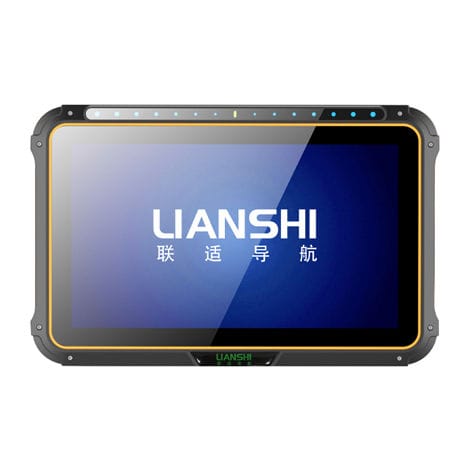

Automated guidance system - T100 - Shanghai AllyNav Technology Co., Ltd. - USB / 4G / WiFi
Automated guidance system - T100 - Shanghai AllyNav Technology Co., Ltd. - USB / 4G / WiFi
Automated guidance system - T100 - Shanghai AllyNav Technology Co., Ltd. - USB / 4G / WiFi - image - 2
Add to favorites
Compare this product


Characteristics

Type
automated
Network
USB, 4G, WiFi

Description

General CPU: ARM Cortex-A7,1.5GHz RAM: 2GB Storage:16GB Micro SD: Extensible:16GB Display Parameters 10-inch Capacitive Touch Screen Resolution: 1024 x 600 Brightness: 800nits nits (standard), visible under the strong light Communications Parameters Build-in 4G module 2.4G WiFi,IEEE802.11 g/b/n ,BT4.0,BLE Physical Parameter Size: 277x 180 x 35mm Weight: 1.4 KG Protection Grade: IP65 Electrical Parameters Power input: 9-36 VDC, wide voltage power supply input Power: < 18 w Build-in Battery: 2600mAh, NTC protection Build-in Spaker: 2W Environmental Index Operating Temperature: - 10 ℃ to 70 ℃ Storage Temperature: - 30 ℃ to 80 ℃ Relative Humidity: 0% to 90%, @ 40 ℃ (no condensation) IO Interface 4 x 12 core connecting ports Include 2 x serial port, 1 x 485 port, 2 x CAN, 4 x CVBS video port, 1 x power supply, 1 x power output, 2 path input GPIO, 1 path intput GPIO,1 x Network port,1 x USB port, 1 x Audio port Accessories Data Cable Vehicle Fixing Bracket
